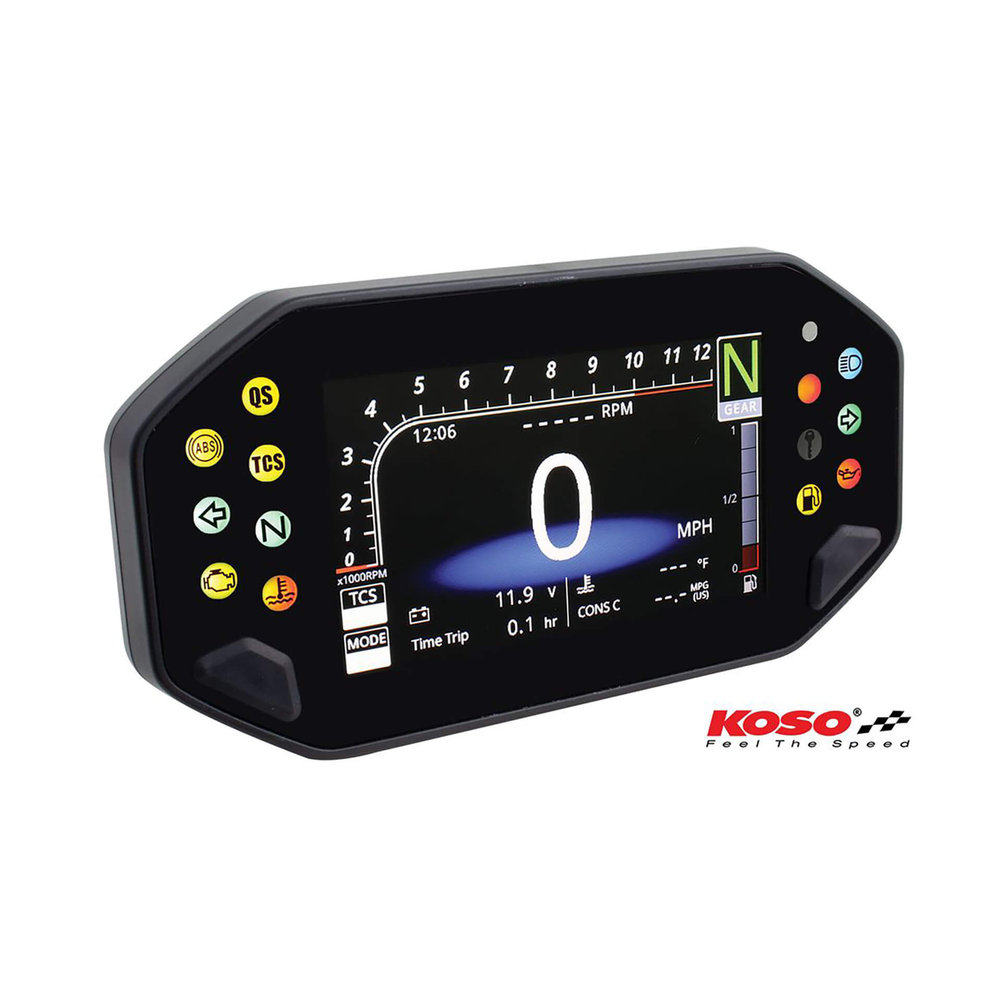

RX-4 TFT multifunctional cockpit
Koso RX4 suitable for Yamaha MT-07, MT-09, XSR 700, XSR 900 ®*
The new multifunctional Koso® Koso RX4 suitable for Yamaha MT-07, MT-09, XSR 700, XSR 900 ®* impresses with its modern design, a color-customizable LCD display and its wide range of applications.
The RX4's basic features and displays include speedometer, tachometer, clock, cell phone battery status, Bluetooth connectivity, fuel gauge, gear indicator, trip meter, current and average fuel consumption, voltmeter, drive time and drive mode.
In addition, the RX4's (warning) lights display ABS light, engine light, engine oil light, QS quick shift signal, TCS tracking control signal, neutral light, refrigerant temperature warning light, RPM shift flash, IMMO anti-theft light, low fuel warning, high beam, and right and left turn signals.
The RX4 guarantees a supply of a variety of information about your vehicle as well as about every ride and is the right plug & play - multifunctional device for the Yamaha MT-07®*.
Speedometer
Display range: 0 ~ 360 km/h (0 ~225 MPH)
Display unit: 1 km/h (MPH), switchable
Odometer
Display range: 0 ~ 999.999 km (miles), then returns to
zero
Display unit: 1 km (miles)
Daily odometer 1, 2
Display range: 0.0 to 9.999.9 km (miles), can
manually reset to zero
Setting unit: 0.1 km (miles)
Low fuel consumption
Display range: 0 ~ 999 km (miles)
Display unit: 1 km (miles)
Engine oil maintenance
Setting range: user settings (500 ~
16.000km /300 ~ 10.000 miles) ~ -999 km (miles),
automatic decrease, depending on the increase of
total mileage
display unit: 1 km (miles)
warning range: texts would change to red color as warning for 0 km
(mile) and below.
Maintenance mileage 1, 2
Setting range: user settings (500 ~
16.000km /300 ~ 10.000 miles) ~ -999 km (miles),
automatic decrease, depending on the increase of
total mileage
display unit: 1 km (miles)
warning range: texts would change to red color as warning for 0 km
(mile) and below.
Recording max speed
Display range: 0 ~ 360 km/h (0 ~225 MPH)
Gear indicator
Display range: -, N, 1 ~ 6
Recording max gear
Display range: -, N, 1 ~ 6
Tachometer
Display range: MT-07: 0 ~ 12.000 rpm
MT-09: 0 ~ 13.000 rpm
XSR700: 0 ~ 12.000 rpm
XSR900: 0 ~ 13.000 rpm
Shift light warning
Indication range: Steady, flashing and flashing
BAR warning
Set point: MT-07: 1.000 ~ 12.000 rpm
MT-09: 1.000 ~ 13.000 rpm
XSR700: 1.000 ~ 12.000 rpm
XSR900: 1.000 ~ 13.000 rpm
Setting unit: 1.000 rpm (large grid),
500 rpm (small grid)
Max. Speed
Display range: MT-07: 0 ~ 12.000 rpm
MT-09: 0 ~ 13.000 rpm
XSR700: 0 ~ 12.000 rpm
XSR900: 0 ~ 13.000 rpm
Air temperature
Display range: -10 ~ 100 °C (14 ~ 212 °F)
Display unit: 1 °C (°F)
Warning range: LO means below -10 °C (14 °F)
HI means higher than 100 °C (212 °F) numbers
turn red and flash as a warning.
Refrigerant temperature
Display range: 0 ~ 250 °C (32 ~ 482 °F)
Display unit: 1 °C (°F)
Max. Refrigerant Temperature Record
Display Range: 0 ~ 250 °C (32 ~ 482 °F)
Refrigerant Temperature Warning
Display Range: LO means below 39 °C (102 °F)
HI means higher than 117 °C (234 °F) numbers
turn red and flash as a warning.
Switch unit: can be switched between Celsius (°C) or
Fahrenheit (°F)
Fuel gauge
Indication range: 6 levels
Indication unit: 1 level (16.6%)
Fuel warning setting
Indication range: the low fuel warning level should
be 1 grid and below, the warning signal would
flash as a warning.
Current fuel consumption
Display range: 0 ~ 40.0 km/l, 2.5 ~ 99.9 l/100km, 0 ~
99.9 MPG (US), 0 ~ 99.9 MPG (GB)
Display unit: 0.1 km/l, 0.1 l/100km, 0.1 MPG (US),
0.1 MPG (GB)
Average fuel consumption
Display range: 0 ~ 40.0 km/l, 2.5 ~ 99.9 l/100km, 0 ~
99.9 MPG (US), 0 ~ 99.9 MPG (GB)
Display unit: 0.1 km/l, 0.1 l/100km, 0.1 MPG (US),
0.1 MPG (GB)
Clock
Setting range: 00:00 ~ 23:59 (24 hours), 1:00 ~
12:59 (12 hours)
Travel time
Display range: 0 ~ 999.9 hours
Display unit: 0.1 hrs.
Time 1, 2 (cumulative time)
Display range: 0 ~ 999.9 hours
Display unit: 0.1 hrs.
Voltage meter
Display range: 8.0 ~ 18.0 V DC.
Display unit: 0.1 V DC
Low voltage warning
Setting range: 8.0 ~ 13.0 V DC, LO means the
setting value and below digits turn red and
flash as a warning.
Setting unit: 0.1 V DC
Warning high voltage
Setting range: 13.1 ~ 18.0 V DC, HI means reach or exceed
setting value digits
turn red and flash as warning.
Setting unit: 0.1 V DC
Target speed
Setting range: 0 ~ 360 km/h (0 ~225 MPH)
Target distance
Setting range: 50 ~ 1.500 m (1/32 ~ 30/32 miles)
Maximum speed
Display range
Speed: 0 ~ 360 km/h (0 ~225 MPH)
Distance: 0 ~ 999 m (0 ~ 3.280 feet)
Rotation speed: 0 ~ The setting value of
Rotation speed display range
Time: 0 ~ 9: 5999
Bluetooth connection status
Display range: Permanent (connected), OFF (disconnected),
iOS operating system: iOS 5.0 and above
Android operating system Android 9, Android 10
Mobile phone battery
Display area: 3 bars
Incoming call notification
Display area: display name or number
for up to 12 Chinese characters .... is displayed for more
than 12 characters Unknown is displayed
if there is no name.
iOS - display name or number of incoming
call, Android - display number
notification of incoming online call
Display range: display name for up to 12
Chinese characters ... is displayed for more than 12
letters Unknown is displayed if
no name is available. Support LINE,
WeChat, WhatsApp. Support iOS, no Android
Notification to play music
Music name: 15 Chinese characters, ... is displayed
for more than 15 characters
Artist name 18 Chinese characters, ...
is displayed for more than 18 characters
Total music length: 00:00 ~ 9:59:59 and 9:59:59
is displayed for more than 9:59:59
Supports iOS, no Android
Current playing time: 00:00 ~ 9:59:59 and 9:59:59 is
displayed for more than 9:59:59
Support of iOS, no Android
Info push
Display area: name - 4 Chinese characters, ..
will be displayed for more than 4 characters Content - 17
Chinese characters, ... will be displayed for more than 17
letters. Support iOS, no Android
Drive Mode
Display Range: STD, A, B
TCS Display
Display Range: 1, 2, OFF
ECO Display
Display Range: Display, No display
Backlight color
Setting range: blue, green, orange, white
Unit
Speed unit: km/h, MPH.
Temperature unit: °C (Celsius) and °F (Fahrenheit).
Fuel economy unit: km/l, l/100 km, MPG (US),
MPG (GB)
Voltage
12V DC
Operating temperature
-20 ~ 85°C
Storage temperature
-.30 ~ 90°C
Specification
JIS D 0203 (S2)
Size of gauge
170 x 86,2 x 42.5 mm
Weight of gauge
Ca. 244,0 g
indicator
ABS lamp (amber)
Left indicator lamp (green)
engine lamp (amber)
QS quick shift signal (green)
TCS tracking control signal (amber)
neutral lamp (green)
refrigerant temp.Warning Light (red)
RPM Shift Light (red)
IMMO Anti-Theft Light (red)
Low Fuel Level Warning Light (amber)
High Beam Light (blue)
Right Indicator Light (green)
Engine Oil Light (red)
