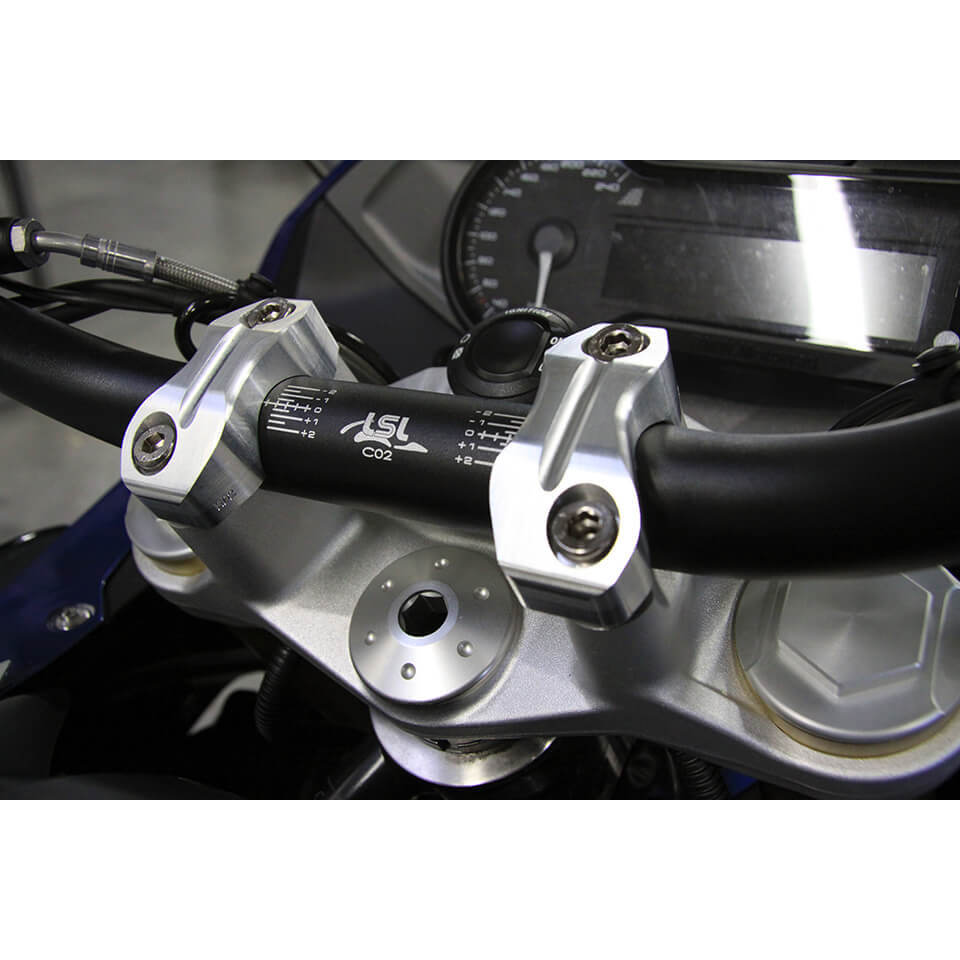

LSL Clamp kit (only upper parts) R1200RS, silver

Craft-Bar clamp cover for LSL handlebars with a diameter of 32 mm. Not for use with the original handlebar!

Necessary article for this product: Craft Bar C02! (129AC02MB)

Our model specific clamps mount to the original mounting points. When using the LSL C02 Craft Bar handlebar the handlebar position changes, the value for your motorcycle is given under offset. The clamping blocks are supplied with a model-specific parts certificate.

Material: aluminum
Material treatment: anodized
Adjustment X: 20 mm closer (with LSL C02 Craft Bar)
Adjustment Y: 55 mm higher (with LSL C02 Craft Bar)
Mounting: at original mounting points, original end weights do not fit.
Dimensions: 32 mm clamping
Identification: KD2

CAUTION IMPORTANT NOTE:
- The use of the original handlebar is not possible with this clamp (designation in ABE KD2).
- The clamp is only in conjunction with a LSL handlebar registration-free.
- Please check before ordering whether the vehicle intended for the conversion is listed in the ABE attached here!
- For each vehicle, there are different specified handlebar designs and constraints that require modifications to the vehicle (e.g. longer lines or cables).

If any conditions are not observed, the operating permit for the vehicle expires!
