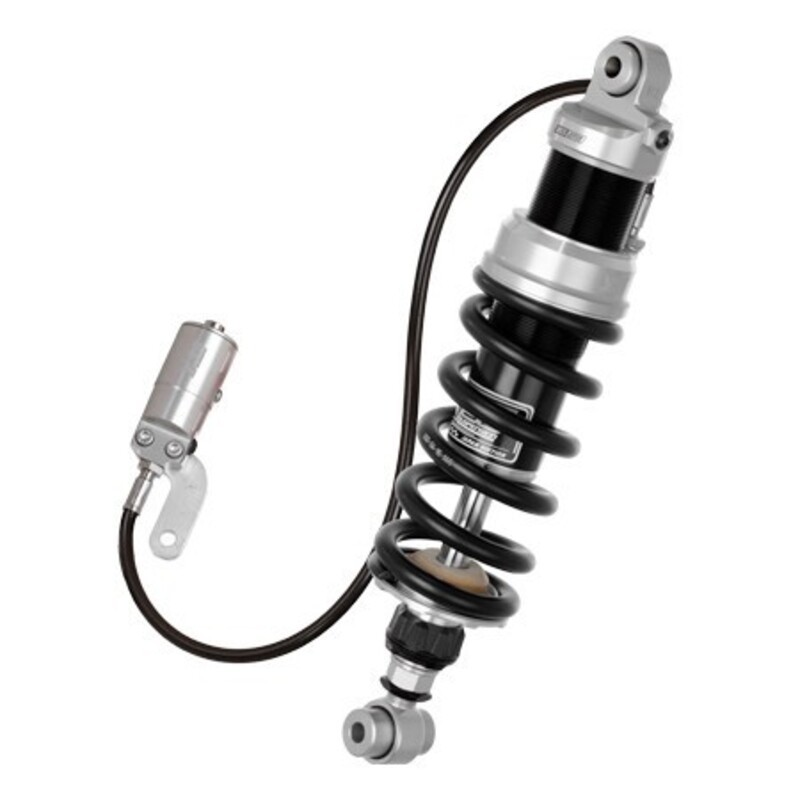

YSS Rear mono shock divided piston Gas

Product information "Suspension strut mono YSS adjustable MA456-350H1RL-06-88"

Frame aluminium body, shock absorber hydraulically adjustable in spring preload and rebound (30 clicks).
The adjustment of the spring preload is connected to the shock absorber by a hose and thus facilitates access.
The length of the shock absorber is adjustable by +-5mm.

• Type: gas pressure
• Attachment at the top: Eye
• Internal diameter eyelet: 10 mm
• Length: 350 mm
• Fastening at the bottom: Eye
• Internal diameter of eye: 10 mm
• Adjustment options: Compression with high/low adjustmentSpring preload hydraulic (remote adjustable)Length adjustable +/- 5 mmRebound
• Spring colour: black
• Spring characteristic: 95
• Spring length: 165 mm
• Diameter of spring: 56 mm
• Compensation reservoir: Yes
• Manufacturer: YSS
• Piston diameter: 45 mm
• Piston rod diameter: 16 mm

Product features

• Color: Schwarz
• Length (mm): 350
• Shock piston diameter (mm): 45
• Shock rod diameter (mm): 16
• Shock Adjustments: Précharge
• Spring Rate: +-5mm
